Jul 07, 2020 The 0.9J USB GRBL controller is compatible to run with this software. The controller has two 12 to 36V input voltage, one 12V laser output and a 24V 775 motor output for ease of access. In addition to the above features, the grbl controller comes installed with a 3 stepper driver of A4988. Drive up to three bipolar stepper motors simultaneously with this three-axis stepper motor driver module, stackable with other M5Stack modules. It uses an ATmega328P-AU controller with three sets of DRV8825PWPR stepper motor driver chips, so it can drive three bipolar steppers at the same time. This module uses I2C to. (BIG SALE) US $34.66 30% OFF Buy GRBL CNC Controller Control Board 3Axis Stepper Motor Connect To 300W Spindle USB Driver Board For CNC Laser Engraving From Merchant CronosMaker Store. Enjoy Free Shipping Worldwide! Limited Time Sale Easy Return. Shop Quality & Best Wood Routers Directly From China Wood Routers Suppliers.
- Cheap Wood Routers, Buy Quality Tools Directly from China Suppliers:GRBL Offline Controller Board 2Axis Stepper Motor Double Y Axis USB Driver Board For GRBL For Laser Engraving Machine Carving Enjoy Free Shipping Worldwide! Limited Time Sale Easy Return.
- Grbl Controller is written using the Qt cross-platform libraries. It also gets some help from the QextSerialPort library to simplify choosing the correct USB serial port. Qt is pretty cool because you can create a nice GUI application for Windows, Mac and Linux.
Cnc Usb Controller Driver Windows 7
Compatibility
To confirm that this part fits your vehicle, please enter your vehicle's details below.
- Year:Select
- Make:Select
- Model:Select
- Submodel:Select
- Trim:Select
- Engine:Select
Description:
This offline controller w/ controller board is designed for the use of Mini CNC router 1610/2418/3018 and even with more advanced function of tool set, limit switch supportive, Laser supportive; Offline and Bluetooth supportive.
Specification:
USB Cable Length: 20cm
Firmware: GRBL 08, 09, 1.1 and so on
Input Voltage: DC 7V- 36V
Applicable CNC Router: 3 Axis CNC router 1610; 2418; 3018
Features:
1. Support GRBL and benbox firmware. Support CNC 3-axis laser engraving machine.
2. The stroke length isn't limited to 30×18 and 24×18, it can be setting other length. Please set the stroke in the command.
For example
3018, please set the stroke in the command, 30cm length and 18cm width;
2418, please set the XY stroke in the command, length 24cm, width 18cm.
Instructions:

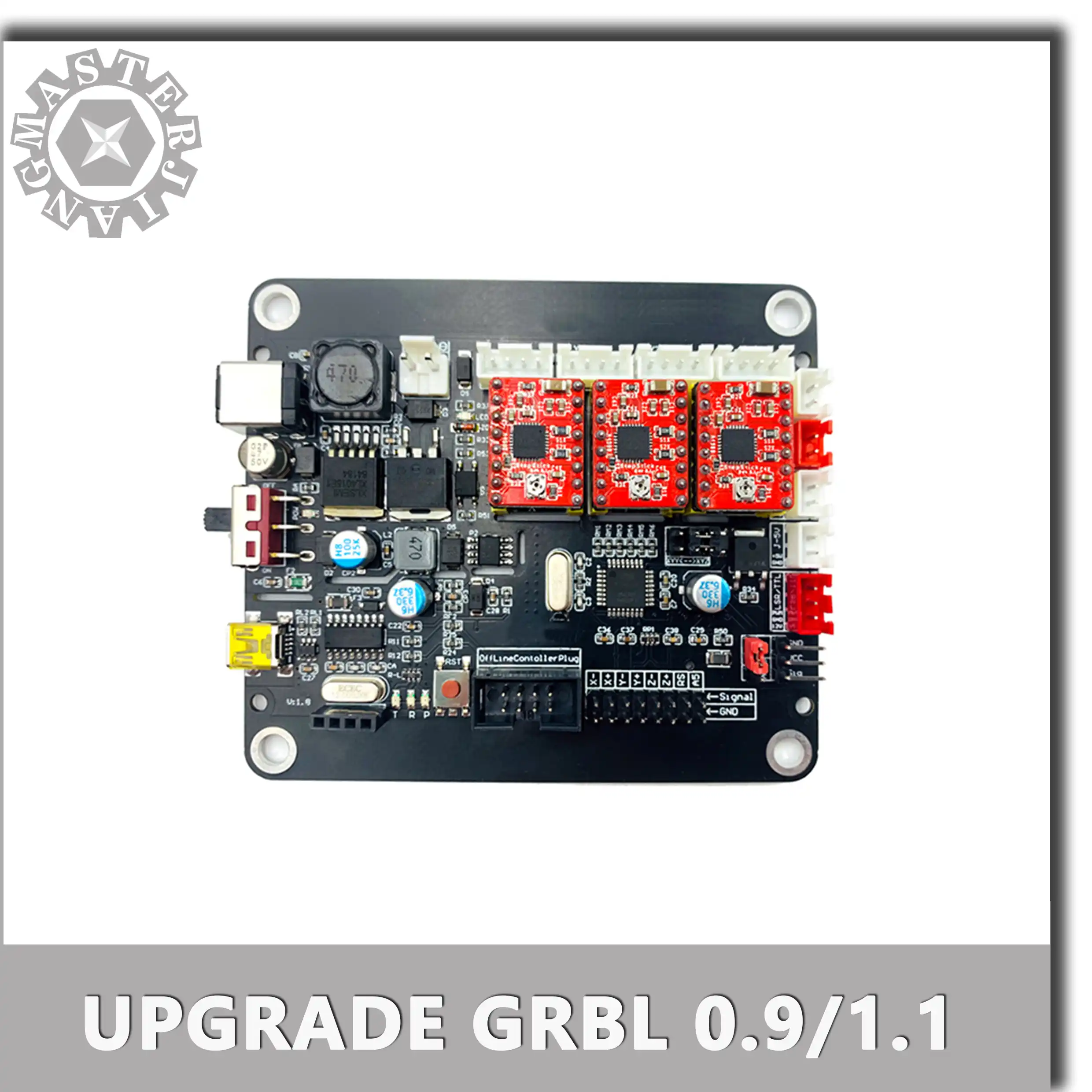

3-Axis GRBL Control Board
Output signal:
1: Fan: Used for shaft motor cooling
2: Shaft: Connect motor shaft, keep the same with power supply voltage, 5A electricity, if the motor power of the spindle is high, can connect external relays such as the switch. G code M3 open, M5 closed, with version 0.9 of the firmware can adjust PWM, achieve the speed of the axis governing and tunable laser
3: X axis motor signal output, A4988 max 1.5A electric current
4: Y-axis motor signal output, A4988 max 1.5A electric current
5: Z-axis motor signal output, A4988 max 1.5A electric current
Input Signal:
1: X-axis minimum limit X-
2: Y-axis minimum limit Y-
3: Z-axis minimum limit Z-
4: Reset button: press the button, system will restart, can be used for urgent stoping of machine
Grbl Controller Usb Driver Update
GRBL Off-line Controller
Press Z+ and Z- , the Z axis will move up and down.
Press X+ and X- , the X axis will move left and right.
Press Y+ and Y- , the Y axis will move Front and Back.
Press SPIN : Spindle on (Laser on ), Spindle off (laser off)
Press SMOD: return
Press Z+ for 5 seconds , change the Language to English.
SD Card: Included , you need a SD card reader to write into the root directory G-code files .
Notice:
The Laser Interface is 3 pin on this control board. Only support 42 stepper motor.
Package Included:
1 x GRBL 3-Axis Control Board
1 x LCD Screen GRBL Controller
1 x USB Cable
1 x Cable for Spindle Connection
1 x SD Card
